How To Use An Air Compressor To Power A Pneumatic Cylinder – A Details Guide

An air compressor is a great option if you need to power a pneumatic cylinder. Here are a few tips on how to use an air compressor to power a pneumatic cylinder:

1. Make sure that the air compressor is properly sized for the pneumatic cylinder.
2. Connect the air compressor to the pneumatic cylinder using the proper fittings.
3. Turn on the air compressor and let it build up pressure.
4. Adjust the pressure regulator on the air compressor to the correct pressure for the pneumatic cylinder.
5. Use the air compressor to power the pneumatic cylinder by turning on the air supply and operating the cylinder.

How Do You Set Up An Air Compressor To Power A Pneumatic Cylinder?

An air compressor is a device that converts power (using an electric motor, diesel or gasoline engine, etc.) into pressurized air. The compressed air is then used to pneumatic power tools, inflate tires and perform other applications.

Setting up an air compressor to power a pneumatic cylinder is a relatively simple task that can be completed in a few steps.

1. Determine the size of the air compressor needed to power the pneumatic cylinder. This will be based on the cylinder’s air consumption rate and the desired pressure.
2. Connect the air compressor to an electrical power source and turn it on.
3. Adjust the pressure regulator on the air compressor to the desired pressure.
4. Connect the air hose from the air compressor to the pneumatic cylinder.
5. Turn on the air supply to the pneumatic cylinder and operate it as needed.

For example, you have a pneumatic cylinder with an air consumption rate of 10 CFM (cubic feet per minute) and want to operate it at a pressure of 80 PSI (pounds per square inch). Based on this, you would need an air compressor with a minimum capacity of 10 CFM @ 80 PSI.

If you have a pneumatic cylinder that requires 500 PSI, you would need an air compressor with a capacity of at least 10 CFM @ 500 PSI.

How Do You Maintain An Air Compressor To Power A Pneumatic Cylinder?

Compressed air is often used in pneumatic power cylinders. Pneumatic cylinders are a common component in many industrial applications. They are often used in actuators, devices that convert energy into motion.

Air compressors are used for pneumatic power cylinders, providing the air needed to actuate the cylinder. Air compressors can be either electric or gas-powered. It is important to maintain your air compressor to ensure that it is operating properly and providing the correct amount of air pressure. Here are some tips for maintaining your air compressor:

1. Check the air filter regularly and replace it as needed. A dirty air filter can reduce the efficiency of the compressor and cause it to overheat.
2. Check the oil level in the compressor regularly and change the oil as needed. This will help keep the compressor running smoothly and prevent overworking.
3. If the compressor is electric, ensure the electrical connections are tight and corrosion-free.
4. If the compressor is gas-powered, ensure the fuel lines are in good condition and the engine is tuned properly.
5. Make sure that the air compressor is properly lubricated. This will help to prevent wear and tear on the compressor components.
6. Check the air compressor regularly for leaks. Leaks can cause the compressor to lose efficiency and increase operating costs.

By following these tips, you can help ensure that your air compressor is running properly and provide the compressed air needed to power your pneumatic cylinders.

How Do You Troubleshoot An Air Compressor To Power A Pneumatic Cylinder?

If your air compressor isn’t powering your pneumatic cylinder, there are a few things you can do to troubleshoot the issue. First, check that the air compressor is properly plugged in and receiving power. You may need to reset the circuit breaker if it’s plugged in and still not working.

Next, check the air compressor’s pressure gauge to ensure enough pressure. If not, you’ll need to add more air to the compressor. If the air compressor receives power and enough pressure, the issue may be with the pneumatic cylinder. First, check that the cylinder is properly aligned. If it’s not, you’ll need to realign it.

If the cylinder is aligned but still not working, the issue may be with the air supply line. Check for any kinks or blockages in the line. If you find any, you must remove them before the cylinder works properly. If you’ve checked all these things and the air compressor still isn’t powering the pneumatic cylinder, you may need to call a professional for help.

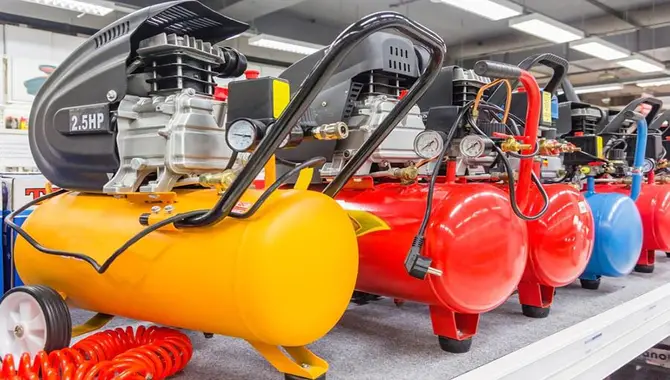

How Do You Store An Air Compressor To Power A Pneumatic Cylinder?

When it comes to powering pneumatic cylinders, one of the most popular options It is to use an air compressor. But how do you properly store an air compressor to ensure it’s ready to go when needed?

Here are a few tips:

1. Keep it clean This one seems like a no-brainer, but it’s keeping the air compressor clean. Af is important to all; you don’t want dirt and debris getting into the cylinder and causing problems.
2. Store it in a cool, dry place Another obvious tip, but worth mentioning nonetheless. You don’t want your air compressor to be stored in an area where it will be exposed to extreme temperatures or humidity.
3. Check the oil level Before you store your air compressor, make sure to check the oil level. If it’s low, top it off. This will help keep the compressor in good working condition.
4. Cover it up If you’re storing your air compressor for an extended period, it’s a good idea to cover it up. This will help protect it from dust and other potential damage.
5. Drain the air Last but not least, don’t forget to drain the air from the compressor before you store it. This will help prevent the formation of rust and other corrosion.

Following these simple tips will help you store your air compressor properly so that ready to go when you need Please comment below if you’re still unclear about using an air compressor to power a pneumatic cylinder.

Conclusion

An air compressor and pneumatic cylinder system can provide reliable and efficient operation for many years with proper care and maintenance. As always, we recommend to consult with a qualified professional before attempting any pneumatic system installation or maintenance.

Knowing how to use an air compressor to power a pneumatic cylinder is indeed an efficient way to accomplish various tasks. You can ensure that your equipment operates smoothly and effectively by following the proper steps.

It’s important to prioritize safety when working with pneumatic systems and regularly maintain and inspect your equipment to avoid potential hazards. And as always, we hope our provided information was helpful to you.

FAQs

1.What Problem Do Pneumatic Cylinders Solve?

Ans: Pneumatic cylinders solve the problem of converting compressed air into mechanical motion to perform tasks such as lifting, pushing, or pulling objects.

2.What Type Of Compressor Does An Airbrush Use?

Ans: An airbrush typically uses a small, low-pressure compressor called a diaphragm compressor.

3.Which Type Of Air Compressor Suits Best For The Task?

Ans: The type of air compressor best suited for a task depends on factors such as the required air pressure, volume, and portability. For example, a large stationary compressor with a high CFM (cubic feet per minute) output would be best for industrial applications, while a small portable compressor with a low CFM output would be suitable for home use or hobbyist projects.

4.What Unit Is Used To Determine How Much Air Is Needed?

Ans: The unit used to determine how much air is needed is usually measured in cubic feet per minute (CFM).

5.What Type Of Pressure Is Required To Run The Cylinder?

Ans: The type of pressure required to run the cylinder depends on the specific application and type of cylinder, but it is typically hydraulic pressure or pneumatic pressure.
