Best 120V 20 Gallon Air Compressor: Effortless Setup

Hey there, DIY friends! So, you’ve got a project in mind and you’re eyeing that sweet 120V 20-gallon air compressor. It’s a fantastic tool, perfect for a lot of home garage tasks. But setting it up for the first time can feel a bit daunting, right? Don’t you worry! I’m here to walk you through it, just like I’d do for a neighbor. We’ll make sure you get it hooked up safely and efficiently, so you can start using it without a hitch. Let’s get this powerhouse humming in your workshop!

Quick Summary

This guide focuses on the seamless setup of a 120V 20-gallon air compressor, a popular choice for home DIYers. We’ll cover everything from unpacking to testing, making sure you can get your compressor up and running with confidence. You’ll learn about necessary tools, safety precautions, and common setup steps, ensuring a smooth and successful process. Get ready to tackle your projects with renewed ease!

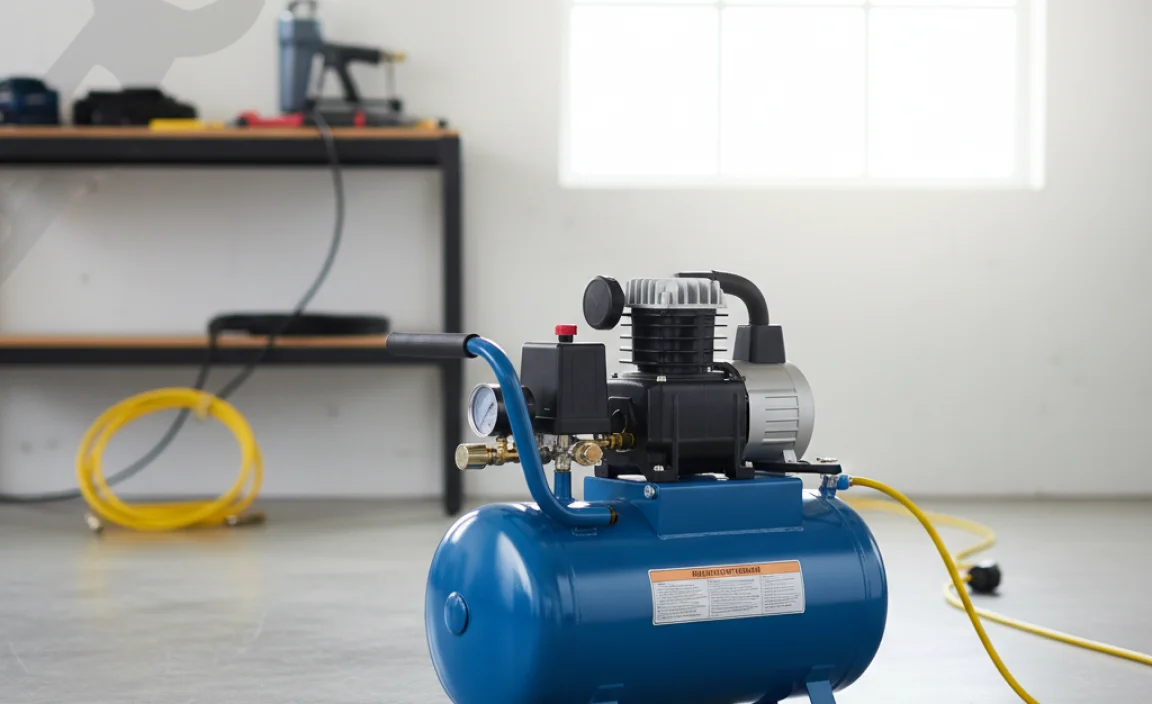

Why a 120V 20 Gallon Compressor is Your Go-To

If you’re diving into DIY projects around the house, a 120V 20-gallon air compressor is often the sweet spot. It’s powerful enough for tasks like inflating tires, powering nail guns for small trim jobs, or even running some smaller spray paint projects. But here’s the best part: it runs on a standard household outlet, meaning no special wiring or hefty generator needed. You just plug it in, and you’re good to go. This combo offers a great balance of power, portability, and convenience for most home garages and workshops.

What You’ll Need for Setup

Before you even think about plugging anything in, let’s gather what you’ll need. Having everything ready makes the process go so much smoother and faster. Think of it like prepping your ingredients before you start cooking!

Essential Tools and Items:

• Your Air Compressor: Of course!
• Owner’s Manual: Don’t toss this! It’s your best friend for specifics about your model.
• Power Cord: Check if one is included or if you need to supply your own heavy-duty cord.
• Air Hose: You’ll need a suitable air hose to connect your tools to the compressor.
• Hose Fittings/Connectors: Make sure you have the right quick-connect fittings for your hose and tools.
• Thread Seal Tape (Teflon Tape): For sealing threaded connections to prevent air leaks.
• Safety Glasses: Absolutely crucial for eye protection.
• Work Gloves: Good for protecting your hands.
• A Level: To ensure your compressor sits on a stable, flat surface.
• A Drain Pan or Bucket: For draining any initial oil if your compressor requires it.
• Optional: Air Filter (if not pre-installed): Some models might require you to attach an intake air filter.

Understanding Your Compressor Parts

Let’s take a quick peek at the main bits and pieces you’ll see on your 120V 20-gallon compressor. Knowing the names will make following instructions easier.

• Tank: This is the big tank that stores the compressed air.
• Motor/Pump: This part creates the compressed air.
• Pressure Switch: This automatically turns the motor on and off to maintain the air pressure.
• Pressure Gauge(s): These show you the air pressure in the tank and the regulated output pressure.
• Regulator: This lets you adjust the air pressure coming out of the compressor to match your tool’s needs.
• Drain Valve: Usually located at the bottom of the tank, used to drain out moisture and oil.
• Air Outlet Port: Where you connect your air hose.
• Handle and Wheels: For moving the compressor around.
• Power Cord Inlet: Where you plug in the electricity.

Step-by-Step Effortless Setup

Alright, team, let’s get this compressor ready to rumble! We’ll go through this slowly, step by step, so you feel confident at every stage. Safety first, always!

Step 1: Unpacking and Inspection

Carefully open the box. Remove the compressor and any accessories. Look for any obvious damage that might have happened during shipping. Gently check all parts and make sure nothing is loose or broken. Read through your owner’s manual for any specific unpacking instructions for your model.

Step 2: Positioning Your Compressor

Find a good spot for your new compressor. It needs a few things:

• Ventilation: Compressors get warm. Make sure there’s plenty of air circulation around it, at least a foot or two of clear space.
• Level Surface: This is super important! Use your level to make sure the compressor is sitting perfectly flat. An uneven surface can cause vibration and strain the motor.
• Near Power: You’ll need a grounded 120V outlet. Make sure it can handle the amperage draw of the compressor (check your manual).
• Away from Hazards: Keep it away from flammable materials and excessive dust.

Step 3: Adding Oil (If Required)

Important Note: Some oil-free compressors exist, but many 20-gallon models do require oil. Check your manual! If yours needs oil:

1. Locate the oil fill cap.
2. Use the recommended type and amount of oil specified in your manual. Using the wrong oil can damage your compressor.
3. Pour the oil slowly and carefully. Don’t overfill.
4. Replace the oil fill cap securely.
5. If you accidentally spill any oil, wipe it up.

Pro-Tip: Have a drain pan underneath just in case you’re a little messy. It happens!

Step 4: Attaching the Air Filter (If Needed)

Some compressors have an air filter that needs to be attached to the intake. This prevents dust and debris from getting into the pump. It’s usually a simple screw-on or clip-on process. Refer to your manual for the exact location and how to attach it. Make sure it’s snug and secure.

Step 5: Sealing Hose Connections

You’ll likely need to attach fittings to the compressor’s outlet port and to your air hose. This prevents leaks, which rob your compressor of power and make it work harder.

1. Find the threaded air outlet port(s) on your compressor.
2. Take your quick-connect fitting or regulator fitting.
3. Wrap thread seal tape (Teflon tape) around the male threads of the fitting. Wrap it about 3-4 times in a clockwise direction.
4. Screw the fitting into the compressor’s outlet port by hand until it’s snug. Then, use a wrench for a final snug turn (don’t overtighten!).
5. If you’re installing a regulator directly, repeat this process for its threads connecting to the compressor.

Why thread tape? It fills in microscopic gaps, creating an airtight seal. It’s a small step that makes a big difference in performance.

Step 6: Connecting the Power Cord

This is usually straightforward, but here’s what to keep in mind:

1. Check the Cord: Use a heavy-duty extension cord if you need one, rated for outdoor use and the amperage of your compressor. A cord that’s too thin can overheat and reduce power. For a 120V 20-gallon unit, a 12-gauge cord is often recommended for longer runs. Check your manual for specific recommendations.
2. Plug In: Connect the cord securely to the compressor’s power inlet.
3. Plug into Outlet: Plug the other end into a grounded 120V outlet.

Important Safety Tip: Never plug in the compressor if there’s any sign of damage to the cord or plug. Ensure the outlet is properly grounded. You can learn more about proper electrical grounding from the U.S. Department of Energy’s consumer safety resources.

Step 7: Pre-Operation Check

Before you flip the switch, do one last quick check:

• Is the compressor level?
• Is the power cord securely plugged in at both ends?
• Are all air fittings snug?
• Is the area around the compressor clear and well-ventilated?
• Is the oil level (if applicable) correct?

Step 8: Turning It On for the First Time

Now for the moment of truth! Follow these steps:

1. Ensure the unit is plugged in.
2. Locate the power switch. It’s often a simple ON/OFF toggle.
3. Flip the switch to the ON position.
4. Listen for the motor to start and the pump to engage. It will start to fill the tank with air.
5. Watch the pressure gauge. You’ll see the pressure increase as the tank fills.
6. The compressor will automatically shut off when it reaches its cut-off pressure (usually around 120-150 PSI). This is normal operation.
7. Let it run for a few minutes to ensure everything sounds right. No unusual clanking or grinding.

Step 9: Draining Initial Moisture

Most new compressors have some residual moisture from manufacturing or shipping. It’s good practice to drain the tank before your very first use, or shortly after the first run.

1. Make sure the compressor is turned OFF and unplugged.
2. Locate the drain valve at the bottom of the tank.
3. Slowly open the drain valve. You might hear a hiss as any stored air escapes.
4. If any water or oily residue comes out, let it drain into your pan or bucket.
5. Once all the air is out and any liquid has drained, close the valve securely.

Regular draining is key: You’ll want to do this after every use to prevent rust and keep your air clean and dry.

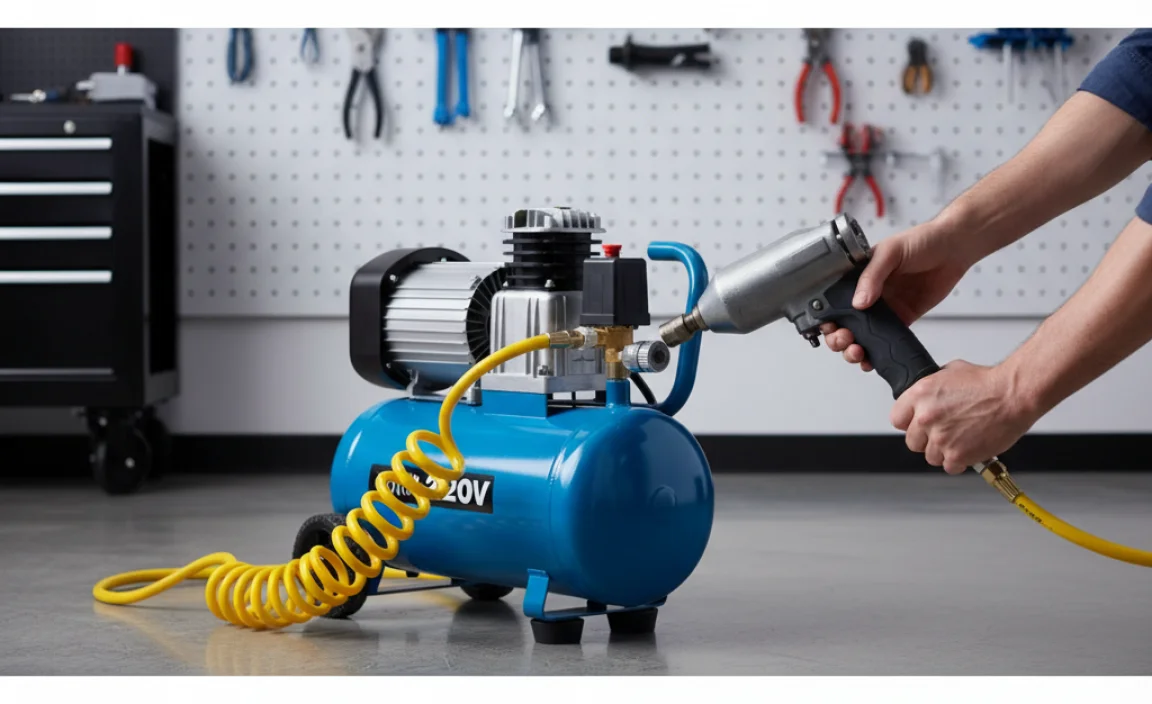

Connecting Your Air Tools

You’ve done the hard part! Now let’s connect your tools and get to work.

Step 1: Adjusting the Regulator

This is probably the most critical step for tool performance.

1. Ensure the compressor is on and has some air pressure in the tank (above 20 PSI is a good start).
2. Locate the regulator knob (usually near the air outlet).
3. Pull the knob out or turn it counter-clockwise to adjust.
4. Check the recommended operating pressure for your specific air tool. This is crucial! You’ll find it in the tool’s manual. Typical pressures range from 30 PSI for a brad nailer to 90 PSI for an impact wrench.
5. Slowly turn the regulator knob while watching the output pressure gauge. Adjust it to the desired PSI for your tool.
6. Push the knob back in or turn it clockwise to lock in the setting.

Why is this important? Too little pressure and your tool won’t work correctly. Too much pressure can damage your tool or even be dangerous.

Step 2: Attaching the Hose

Simply push the male end of your air hose’s quick-connect fitting into the fitting on the compressor’s outlet port. You should hear a click as it locks securely. Give it a gentle tug to make sure it’s seated properly.

Step 3: Connecting Your Tool

Connect the other end of your air hose to your chosen air tool in the same way, using the quick-connect fitting on the hose. Make sure the tool is turned off or in a safe position before connecting.

Step 4: Testing Your Tool

With the regulator set correctly and tools connected, try operating your tool. If it’s a nailer, point it in a safe direction (away from people) and squeeze the trigger. You should hear air flowing and the tool should operate as intended.

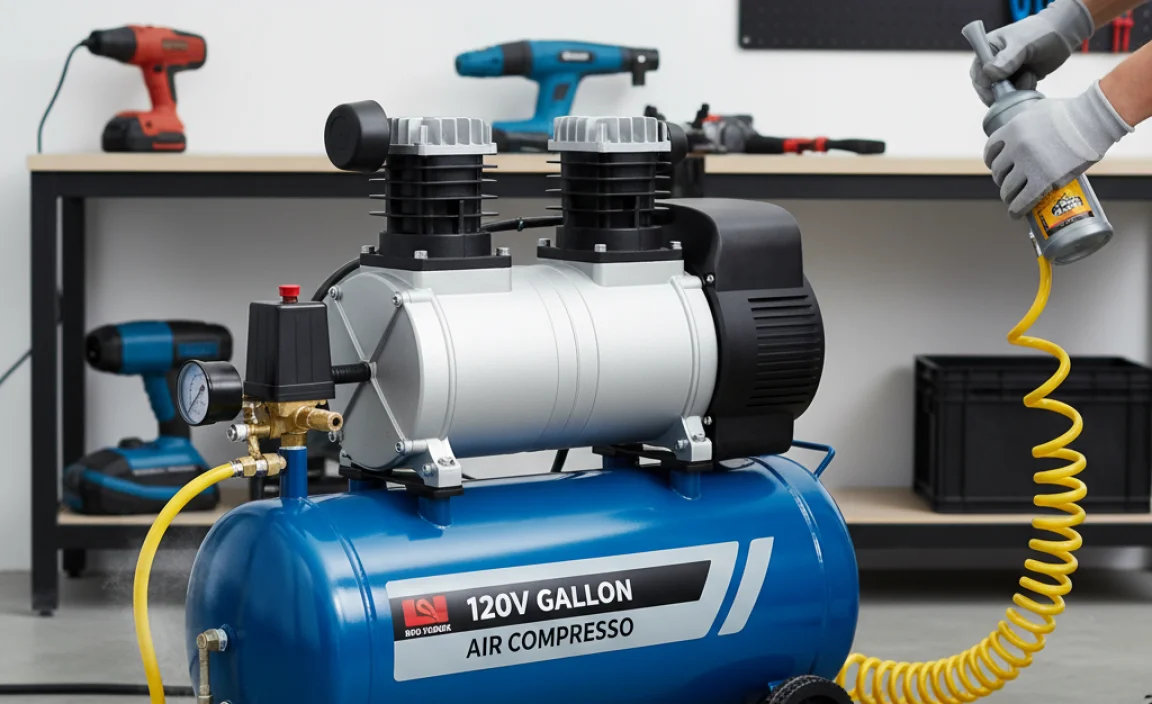

Compressor Use and Maintenance Tips

Getting your compressor set up is just the start. A little care goes a long way to keep it running smoothly for years.

Regular Draining

As mentioned, drain the tank after every use. Moisture is the enemy of your compressor’s tank and air lines. Some compressors have ball valves, others have petcocks. Open them up and let out all the air and condensed water.

Checking Oil Levels

If your compressor is oil-lubricated, check the oil level regularly, ideally before each use. If it’s low, top it off with the correct type of oil. Oil changes will be needed periodically, consult your manual for intervals.

Cleaning the Air Filter

The air filter prevents dust from entering your pump. Depending on your environment, you might need to clean or replace it every few months. A clogged filter makes your compressor work harder and can reduce its lifespan. Check your manual for how to access and clean/replace it.

Inspecting Power Cord and Hoses

Periodically, check your power cord and air hoses for any nicks, cuts, or damage. Replace them if you find any issues to prevent electrical hazards or air leaks.

Annual Maintenance

Beyond the basic checks, your manual will likely suggest more in-depth annual maintenance. This might include things like checking valve springs or servicing the pressure relief valve. If you’re not comfortable with these, consider taking it to a service center.

Comparative Specs: Key Features

While the setup process is similar, different brands and models of 120V 20-gallon air compressors have variations. Here’s a look at what you might compare:

<td style="border: 1px solid black; padding

Feature	Typical Range/Expectation	Why It Matters
Horsepower (HP)	2.0 – 3.0 HP	Higher HP means more power to drive the pump and maintain pressure under load.
