How To The Right Air Compressor Pressure Switch: A Beginner’s Guide

An air compressor is essential for many industries, from manufacturing to construction. A pressure switch is a vital component of any air compressor that controls the pressure that builds up in the tank and shuts off the motor when the desired pressure is reached.

If you are new to air compressors, understanding how to maintain and adjust the pressure switch can be daunting. Here we will cover everything you need to know about how to the right air compressor pressure switch, how it works, and how to maintain it.

We will also discuss common problems that can arise with your pressure switch and advanced troubleshooting tips to help you keep your air compressor running smoothly.

How To The Right Air Compressor Pressure Switch

What Is An Air Compressor Pressure Switch?

What Is An Air Compressor Pressure Switch

The Air Compressor Pressure Switch is responsible for managing an air compressor’s operation by keeping track of the air pressure in the tank and automatically turning the compressor on or off according to preset levels. The switch includes an electrical contact that opens or closes as the pressure shifts, so it’s critical to choose the proper switch based on your air compressor’s requirements.

How To The Right Air Compressor Pressure Switch: 6 Steps

How To The Right Air Compressor Pressure Switch: 6 Steps

When it comes to using an air compressor, selecting the right pressure switch is crucial. The pressure switch serves as a control mechanism that turns the compressor on and off based on the set pressure level. Choosing the right pressure switch for your air compressor can help ensure it runs smoothly and safely.

However, Selecting the right air compressor pressure switch is essential for ensuring the optimal performance of your compressor. Here are six steps to help you how to the right air compressor pressure switch:

  1. Determine the required pressure range: The first step is to identify the required pressure range for your application. This will help you choose a switch that can handle the necessary pressure.
  2. Consider the cut-in and cut-out pressures: These are the pressures at which the switch turns on and off, respectively. Make sure to select a switch with cut-in and cut-out pressures that match your requirements.
  3. Check for compatibility: Ensure the switch is compatible with your compressor model and voltage.
  4. Choose between adjustable or fixed settings: Some switches offer adjustable settings, while others have fixed settings. Choose based on your specific needs.
  5. Look for additional features: Consider any additional features that may be important to your application, such as an unloader valve or an on/off switch.
  6. Purchase from a reputable supplier: Finally, make sure to purchase from a trusted supplier who can provide quality products and reliable customer support. By following these steps, you can ensure that you choose the right air compressor pressure switch for your needs.

Understanding PSI And Differential

Maintaining optimal air pressure levels in your compressor is essential to ensure its longevity and efficiency without causing any damage. Understanding PSI and differential are crucial aspects of air compressor pressure switches.

These switches regulate incoming line pressure, cut-out points, cut-in points, and differential adjustment mechanisms, ensuring your compressor operates at the right pressure range. Choosing a fixed-range pressure switch with manual adjustment screws or knobs that regulate cut-out/cut-in pressures can help you achieve maximum performance from your compressor motor while improving safety & performance.

Components Of A Pressure Switch

Air compressor pressure switches come with two crucial settings, Cut-In Pressure and Cut-Out Pressure that reflect when the compressor motor should start or stop running. The electrical circuit within these switches ensures smooth switching between these states.

Choosing the right pressure switch for your electric air compressor is vital to avoid confusing and dangerous situations. Important factors include Tank Pressure, Electrical Contacts alongside Cut-In Pressure & Cut-Out Pressure settings.

How To Check And Adjust The Cut-Out And Cut-In Pressure

How To Check And Adjust The Cut-Out And Cut-In Pressure

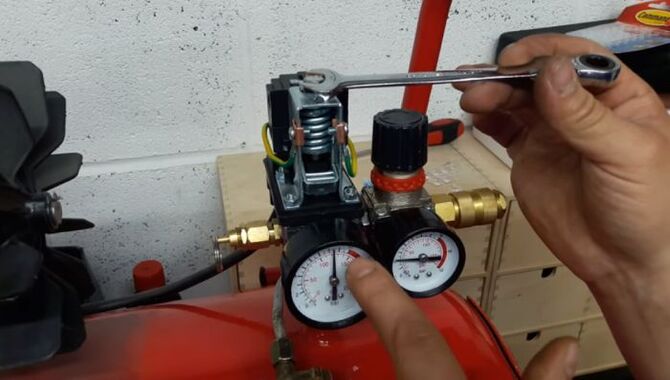

Checking and adjusting a pressure switch’s cut-out and cut-in pressure is an important step in ensuring that your compressor operates efficiently and effectively. The cut-out pressure is the maximum pressure at which the compressor will shut off, while the cut-in pressure is the minimum pressure at which the compressor will turn back on.

These pressures should be set according to the recommended specifications for your particular compressor. To check and adjust the cut-out and cut-in pressure, you will need to locate the pressure switch on your compressor. This switch is typically located near the motor and will have two wires running to it.

Once you have located the switch, use a pressure gauge to determine the current cut-out and cut-in pressures. Simply connect the gauge to the compressor and monitor the pressure as it rises and falls during operation.

To adjust the cut-out pressure, turn the screw on the pressure switch clockwise to increase the pressure or counterclockwise to decrease it. It is important to make small adjustments and monitor the pressure as you go to avoid over-pressurizing the system. To adjust the cut-in pressure, turn the screw on the pressure switch that is labelled “range” or “differential.” Turning the screw counterclockwise will decrease the cut-in pressure.

Tools And Materials Required

To check and adjust the air compressor pressure switch properly, you will require some essential tools such as a wrench, screwdriver and pressure gauge. Before working on it make sure that the power supply is turned off and there is no residual air in the system.

Gauge the current air pressure levels using a pressure gauge before adjusting the cut-out and cut-in settings of your new compressor’s pressure switch. Don’t forget to consult your compressor manual for specific instructions and safety precautions.

Precautions To Take While Adjusting

When adjusting the pressure switch, your safety should be your top priority. Always wear protective gear, gloves, and eye goggles to avoid potential hazards. Additionally, ensure the power supply is turned off before adjusting the air compressor pressure switch. Take your time while adjusting, and don’t rush through it.

Make small adjustments and monitor the pressure gauge to avoid over-pressurizing the tank or other dangerous situations. By following these precautions, you can safely adjust your air compressor pressure switch and enjoy optimal performance from your equipment.

Diagnosing Common Pressure Switch Problems

Diagnosing Common Pressure Switch Problems

Common problems can arise with air compressor pressure switches, such as turning on or off, faulty gauges and valves, and diaphragm issues. To properly maintain your air compressor pressure switch, diagnosing these problems early is crucial for replacement or other necessary steps.

Remember to check the cut-out and cut-in settings before adjusting with a wrench or set screw according to your compressor manual. With regular maintenance and replacement of your air compressor pressure switch, you can ensure optimal performance for any pneumatic tool or mechanical device powered by an electric air compressor.

Identifying Faulty Gauges And Valves

Identifying Faulty Gauges And Valves

If you want to identify faulty gauges and valves in your air compressor, always keep a few things in mind. Look out for fluctuating pressure readings, as this could indicate a problem with the pressure gauge. Another thing to check is the valves for any visible signs of wear or damage that may have caused them to malfunction. Make sure you regularly check and replace all faulty parts on your air compressor for it to work efficiently.

Common Diaphragm Issues

A damaged or faulty diaphragm can lead to leaks or inaccurate air compressor pressure switch readings. Tears, cracks, or punctures are common issues with the diaphragm caused by age, wear and tear, extreme temperatures or chemicals exposure.

Replacing a damaged diaphragm is a fairly simple process requiring minimal tools and experience. Maintaining and inspecting your pressure switch regularly will prevent these issues from arising. Therefore, it is essential to check for any signs of damage periodically to ensure optimal performance of your compressor.

Replacing A Faulty Pressure Switch

Replacing A Faulty Pressure Switch

If you are dealing with a faulty air compressor pressure switch, it’s important to identify the symptoms first. Once done, choose a new air compressor pressure switch that suits your compressor’s specification and size.

After that, follow the correct installation procedures for safety purposes. Lastly, remember to test your new pressure switch and make sure that it is functioning correctly. By doing so, you can avoid potential problems in the future.

Identifying And Disconnecting Terminals

Follow these steps to safely identify and disconnect terminals in your air compressor pressure switch. Start by turning off the power supply to avoid electrical shock or damage. Then, locate each wire and terminal to make reinstallation easier. Finally, use caution during installation and refer to manufacturer instructions for a smooth setup without further issues.

Removing And Installing The New Switch

To replace a faulty pressure switch with a new one for your air compressor, ensure that you turn off the power supply and drain any air from the compressor tank first. To avoid confusion when setting up a replacement switch, carefully detach all electrical wires and remove them from the old device while noting their locations.

Next, install your new air compressor pressure switch using its attached wires and tubing in its proper positions before adjusting its settings. Finally, test your pneumatic tool to see if it reaches its desired pressure without leaks or malfunctions.

Advanced Troubleshooting Tips For Air Compressor Pressure Switches

Advanced Troubleshooting Tips For Air Compressor Pressure Switches

When dealing with air compressor pressure switches, it’s important to have some advanced troubleshooting tips in mind. First, you should always check the wiring connections to ensure proper connection and avoid electrical issues. Additionally, verifying the pressure switch settings and inspecting the pressure relief valve for leaks or damage are important steps in maintaining your compressor’s pressure switch.

Other key factors to consider include upgrading to a digital pressure switch for more accurate readings, easier troubleshooting, and identifying and disconnecting terminals before replacing a faulty pressure switch. Remembering these tips can help keep your air compressor running smoothly and efficiently.

How To Maintain Your Air Compressor Pressure Switch

How To Maintain Your Air Compressor Pressure Switch

To keep your air compressor pressure switch in good condition, follow a few maintenance tips. Firstly, regularly inspect the switch for any wear and tear or damage, such as cracks or broken parts. Next, clean the switch and its surrounding area to prevent dirt and debris from accumulating and causing issues.

Additionally, ensure that the pressure relief valve is functioning properly and not stuck in the open position. It’s also important to periodically check and adjust the pressure settings according to your tool’s requirements. By following these simple maintenance tips, you can extend the lifespan of your air compressor pressure switch and avoid any unexpected downtime due to malfunctions.

Conclusion

Maintaining the right pressure in your air compressor is crucial to ensure its smooth functioning and longevity. The air compressor pressure switch plays a pivotal role in regulating the air pressure, so it’s essential to keep it in good working condition.

By considering factors such as the type of compressor, the required pressure range, and the voltage rating, you can select a switch that meets your specific needs.

It is also important to choose a switch from a reputable manufacturer and follow proper installation and maintenance procedures to ensure optimal performance. With these tips in mind, you can confidently how to the right air compressor pressure switch for your needs and keep your compressor running smoothly.

Frequently Asked Questions:

What Is The Right Air Compressor Pressure Switch?

Choosing the right air compressor pressure switch depends on your compressor’s specific requirements, including maximum pressure, voltage, and switch type. It’s best to seek advice from a professional or refer to the manual. Popular brands include Furnas, Square D, and Condor.

How Do I Know If My Air Compressor’s Pressure Switch Is Bad?

If your air compressor is not functioning correctly, it could be due to a faulty pressure switch. You can test the continuity with a multimeter or listen for clicking sounds. If you suspect the pressure switch is bad, replacing it may be necessary for proper operation.

Is Leaving A Running Air Compressor With Its Pressure Switch Turned On Safe?

Leaving a running air compressor with the pressure switch on is not advised as it could cause overheating and damage to the equipment. To prevent this, monitor pressure levels and turn off the compressor when necessary. Follow manufacturer instructions for safe use.

How Do I Fix An Air Compressor That Has A Broken Pressure Switch?

If your air compressor’s pressure switch is broken, turn it off and unplug it. Then, remove the switch’s cover and disconnect any wires. Replace the switch with the same size and rating, reconnect the wires, and turn the power back on.

What Is An Air Compressor Pressure Switch, And How Does It Work?

An air compressor pressure switch is a tool that manages an air compressor’s on/off functions. It tracks the tank pressure and stops the compressor once it reaches a specific level. The switch turns the compressor back on when the tank pressure drops below a particular point. Some models have adjustable switches, while others are fixed.
