Electrical safety is of utmost importance for wiring your home. Grounding outlets play a vital role in protecting you and your loved ones from electrical hazards.
A grounded outlet reduces the risk of electrical shocks, electrical fires, and damage to the electronic device yoke. Here, we will discuss what grounding is and why it’s important. We will also provide you with a step-by-step guide on how to ground an outlet into a metal box using five different methods.
Additionally, we’ll provide some safety tips and troubleshooting techniques for common grounding issues you may encounter. Please don’t wait until it’s too late. Read on to learn how to safely ground your home’s outlets for better protection against metal electrical hazards.
What Is Grounding Outlets
Grounding outlets is an important safety measure that helps protect against electrical shocks, ungrounded receptacles or Weather-resistant receptacles, and fires. When you ground an outlet, it means that you provide a direct path for electrical current to safely flow into the ground in the event of a fault or short circuit.

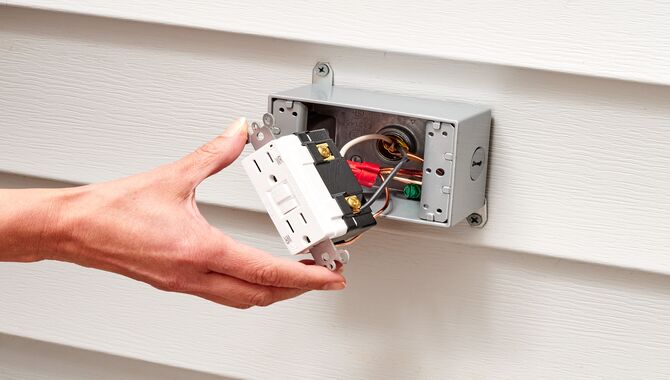

You achieve this by connecting the metal box that houses the outlet to a grounding wire. The grounding wire is often green or bare copper. You have to connect it to a ground rod or water pipe that extends into the earth.
By grounding the outlet, any excess electrical current will be safely directed away from people and property, reducing the risk of injury or damage. It is crucial to ensure that ungrounded outlets are properly grounded by following local electrical codes and guidelines, as improper grounding can pose serious risks.
Materials You Will Need
In order to ground an outlet into a metal box, you will need the following materials. These materials are essential for ensuring that the outlet is properly equipped with a grounding conductor and can help prevent electrical shocks or other safety hazards. Make sure to follow all safety precautions and consult a professional if you are unsure about any step of the process.
- Screwdriver
- Grounding wire
- Wire stripper
- Wire nut or grounding clip
- Pliers or wrench (optional for tightening ground connections)
How To Ground An Outlet Into A Metal Box: 5 Easy Ways
When ensuring the safety and functionality of electrical outlets, grounding them properly is of utmost importance. Grounding an outlet into a metal box provides an essential pathway for electrical currents to travel safely. They are preventing potential electric shock hazards and protecting sensitive electronic devices. Fortunately, there are five easy ways how to ground an outlet into a metal box.
1.Using A Grounding Screw
When grounding an outlet into a metal box, using a grounding screw is a common method. To do this, you will need to make sure that the metal box has pre-drilled holes specifically for grounding screws. These holes are typically located on the inside of the box. Once you have identified the correct holes, insert the grounding screw through them and into the threaded hole in the metal box.
Use a cable clamp screw or drill to tighten the screw securely. This will create a secure electrical connection between the outlet and the metal conduit box, effectively grounding the outlet and providing protection against electrical shocks. It is important to follow proper safety precautions and consult a professional if you are unsure about any part of this process.
2.Using A Grounding Clip
When grounding an outlet into a metal box, using a grounding clip is a popular method. This involves attaching a small metal clip to the outlet and securing it to the metal box. The clip serves as a bridge between the outlet’s equipment insulated equipment grounding conductor wire and the metal box.
It provides a path for electrical current to flow in case of a fault or surge. It is important to ensure that the grounding clip is properly installed and securely attached to both the outlet and the metal box to ensure effective grounding.
This method is commonly handy in older homes or buildings where the electrical system may not have been originally designed with proper grounding in mind. However, we always recommend consulting with a licensed electrician if you are unsure about grounding an outlet into a metal box properly. They can provide expert guidance and ensure that your electrical system meets safety standards.
3.Using A Grounding Wire
When grounding an outlet into a metal box, it is important to follow electrical codes to ensure safety and compliance. One method for grounding an outlet is by using a grounding wire. Typically, electrical codes require connecting the grounding wire to the metal box using a grounding screw or clip.
You should then connect the grounding wire to the ground terminal on the outlet plug itself. This helps to provide a safe path for electrical currents in case of a fault or electrical surge. It is crucial to consult local electrical codes and regulations before attempting any electrical work to ensure that you are following the correct procedures and ensuring the safety of your electrical system.
4.Using A Grounding Pigtail
Using a grounding pigtail is a common method for grounding an outlet into a metal box, especially when the metal box has a metal sheathing. To begin, turn off the power to the ground fault circuit interrupter at the main breaker or fuse box. Next, remove the cover plate and unscrew the metal outlet boxes from the metal box.
Locate the grounding screw on the outlet and remove it if necessary. Strip about 1/2 inch of insulation from both ends of a green or bare copper grounding wire. Attach one end of the hot wire to the grounding screw on the outlet and tighten it securely. Attach the other end of the wire to a screw or clip inside the metal box that is connected to the metal sheathing.
Finally, reattach the outlet to the metal box and replace the cover plate. Remember to turn on the power and test that you properly ground your outlet before using it. If you are unsure about any step in this process, we recommend consulting a professional electrician for assistance.
5.Using A Self-Grounding Outlet
When grounding an outlet into a metal box, using a self-grounding outlet is an effective and convenient option. These outlets have specific designs with built-in clamps-in grounding feature that eliminates the need for a separate ground wire grounding wire. To properly ground a self-grounding outlet, you will need to follow these steps:
- Turn Off The Power: Before starting any electrical work, always turn off the power plugs to the circuit at the main breaker.
- Remove The Old Outlet: Unscrew the screws holding the old outlet in place locations and carefully disconnect the ground wires.
- Prepare The Metal Box: Ensure that the metal box is clean and free of any debris that could interfere with proper grounding.
- Connect The Wires: Attach the black (hot) wire to the brass screw terminal, the white (neutral) wire to the silver screw terminal, and finally, the connector from the green or bare copper wire to the green screw terminal.
- Secure The Outlet: Gently push the outlet into place and secure it to the metal box using screws provided with your self-grounding outlet.
- Test For Proper Grounding: Once everything is securely in place, turn on the power at the main breaker and use a multimeter or voltage cheap pig-tail electrical tester to verify that there is proper grounding.
By following these steps, you can ensure that your outlet is properly grounded into a metal box using a self-grounding outlet. However, if you are uncertain about any aspect of this process or if you encounter any difficulties. Always consult a licensed electrician for assistance.
Ground A Wire For Better Surge Protection
Grounding an outlet into a metal box is an important step in ensuring electrical safety in your home. By grounding the wire, you can provide a path for excess electrical energy to dissipate safely, reducing the risk of electrical shocks and your electronics from the power surge protector. Here’s a step-by-step guide on how to ground a wire in your home:
- Turn Off The Power: Before working with any electrical components, always turn off the power at the circuit breaker to avoid any accidents.
- Locate The Metal Box: Identify the metal box where you want to ground the wire. Make sure you securely mount it and keep it free from any debris or obstructions.
- Prepare The Wire: Strip about 1 inch of insulation from the end of the wire that you will be grounding. This will expose the bare copper conductor.
- Connect To Grounding Screw: Inside the metal box, locate the grounding screw or tab. Attach one end of the bare copper wire to this screw using a screwdriver or pliers.
- Secure Connections: Ensure that all connections are tight and secure in electric metallic tubing, as loose connections can create a safety hazard.
- Test For Grounding Continuity: Once you have completed grounding the wire, use a multimeter to test for continuity between the bare copper wire and a known ground source, such as a metal water pipe or grounding rod.
- Restore Power: After verifying that everything is properly grounded and connected, restore power to the circuit breaker.
The Importance Of Grounding
Grounding an outlet into a metal box is an important safety measure that helps protect against electrical shocks and potential fire hazards. When an outlet is properly grounded, it provides a safe path for excess electrical current to flow into the ground, preventing it from flowing through a person or causing damage to the electrical system. Some key importance of grounding include:
- Electrical Safety: Grounding helps prevent electrical shocks by redirecting excess current away from people and objects. This is especially important in areas where there is a high risk of moisture or dampness, such as bathrooms or outdoor installations.
- Equipment Protection: Grounding also helps protect electrical equipment from damage caused by power surges or voltage fluctuations. By providing a direct path for excess current to flow into the ground, grounding can help extend the lifespan of electronic devices and prevent costly repairs or replacements.
- Fire Prevention: In the event of a fault or short circuit, grounding can help prevent overheating and potential fires by allowing excess current to dissipate into the ground safely. This can be particularly crucial in older buildings with outdated metal conduit wiring systems.
Safety Precautions And Tips For Grounding Outlets
When electrical safety, one of the most important aspects is properly grounding outlets. Grounding outlets help to prevent electrical shocks and fires by providing a safe pathway for electricity to flow into the ground in the event of a fault or malfunction. To ensure that outlets are grounded correctly, it is essential to follow certain safety precautions and tips.
It is important to follow proper electrical codes and guidelines when grounding an outlet into a metal box to ensure its effectiveness and compliance with safety standards. Suppose you are not familiar with electrical work, here are some key points to keep in mind:
- Before attempting, ensure that the power is turned off at the circuit breaker to prevent any electrical shocks.
- Use a voltage tester to verify that there is no electricity flowing through the outlet before working on it.
- Wear protective gloves and goggles to protect yourself from any potential sparks or debris.
- Make sure you have the necessary tools, including wire strippers, a screwdriver, and grounding wire (hot & neutral wires).
- Carefully follow the manufacturer’s instructions for grounding, as different outlets may have specific requirements.
- Double-check all connections and make sure they are secure before turning the power back on.
Troubleshooting Common Grounding Issues
Troubleshooting common grounding issues when grounding an outlet into a metal box can help ensure the safety and functionality of your electrical system. Acceptable installation procedure ensures it and minimizes the risk of electrical hazards in your home. Here are some common issues to watch out for:
- Loose Or Disconnected Ground Wire: Check that you securely connect the ground wire to both the outlet and the metal box. If it is loose or disconnected, reattach it using a screw or grounding clip.
- Paint Or Corrosion On The Metal Box: Make sure that the metal box is clean and free from any paint or corrosion. This can interfere with the grounding connection, so sand down any affected areas before connecting the ground wire.
- Faulty Outlet: If you have checked all connections and the outlet still isn’t properly grounded, the problem may be with the outlet itself. Consider replacing it with a new one to ensure proper grounding.
Conclusion
Satisfactory ground continuity is an important step in ensuring the safety and functionality of the electrical system. Avoid bad grounding by following the proper steps and using the right tools. You can easily accomplish this by a DIY enthusiast or a professional electrician as it’s good for any electrical work to ensure it is done correctly. Thus, you are taking an important step towards protecting your household and preventing any potential hazards.
This is why knowing how to ground an outlet into a metal box is an important safety measure that should not be overlooked. Remember to always prioritize safety when working with electrical outlets and consult a professional if you are unsure about any steps in the process. With proper grounding, you can ensure the safety and functionality of your electrical system for years to come.
Frequently Asked Questions
What To Do If There Is No Ground Wire In The Outlet?
If you find yourself without a ground terminal wire in the outlet, there are a few options. Install a GFCI outlet for electrical safety or connect a grounding wire to the metal box. Or use a grounding adapter plug.
Do Switches Need To Be Grounded In A Metal Box?
It would be best if you ground switches in a metal box. Grounding ensures safety from electric shocks and fires, so it’s crucial to ground all metal components in the circuit properly. If you’re unsure about how to do this, consult an electrician for assistance.
How Do You Ground A Metal Case?
To ground a metal case, connect the ground wire securely to the case using a grounding screw. Strip the wire, tighten the screw tightly, and confirm proper grounding with a multimeter.
What Kind Of Screws To Use For Grounding?
When grounding an outlet into a metal box, it’s important to use screws specifically designed for grounding, such as green or bare copper screws. These screws should be long enough to penetrate the box and make contact with the grounding wire.
How Do You Ground A Metal Box Without Screws?
To ground a metal box without screws, use a grounding clip or wire to attach the ground wire securely. If there is no grounding screw, install a threaded ground clip into an existing screw hole. Always follow local electrical codes and regulations for proper grounding.
